MARSTEK M2200 Portable Power Station
The Philippine SRP flyer sells this unit as the "M2400 Portable Power Station" (named for its 2,400 W AC output). The flyer's specs (2,400 W pure sine wave inverter / 4,800 W surge, 2,240 Wh LFP, 2,000 W AC input, 1,200 W PV input, expandable up to 6,720 Wh) match the M2200 engineering documents. No Drive source explicitly says "M2400 = M2200", so confirm the model on the box.
What it is: a 2,240 Wh LiFePO4 portable power station with four AC outlets (2,400 W rated, 4,800 W peak), USB-C 100 W + 45 W, 2 × USB-A, a 12 V car-charger socket and a DC5525 port. It charges from the wall at up to 2,000 W (about 1.5 h), from solar via two XT60 inputs (600 W each, 1,200 W total), or from a car. Two external-battery ports take P2200 extra batteries, for up to 6,720 Wh.
Who it's for: homes that want a serious portable backup for long brownouts: refrigerator, fans, TV, lights and router together, or short runs of 1,000–1,500 W appliances. Also suits mobile businesses and events.
Best for
- Long brownouts where several essential loads must run together.
- Fast recharge between outages: AC 2,000 W (about 1.5 h) or 1,200 W solar (2–6 h).
- Scaling up with one or two P2200 extra batteries.
- Not for air travel (over 100 Wh, per the manual).
Key features
From the M2200 datasheet and manual:
- 4 × AC outlets, 2,400 W rated / 4,800 W peak, with a resettable overload-protection switch and an AC output switch.
- USB-C1 100 W, USB-C2 45 W, 2 × USB-A 18 W each, car charger / DC 12 V / 10 A (120 W, shared).
- Charging: AC up to 2,000 W (about 1.5 h); solar via 2 × XT60, 600 W each (panels up to 1,200 W, 12–59 V, 2–6 h); car charger (18–22 h). These are manual estimates and depend on conditions.
- MPPT solar charge controller; BMS with OVP, UVP, OCP, SCP, OTP and UTP.
- Expansion: 2 external-battery ports for the P2200 (2,240 Wh each), up to 6,720 Wh (e-Catalog, SRP flyer).
- TFT display + MARSTEK app (Bluetooth 4.2 / Wi-Fi) with a no-load auto-shutdown timer. Touch-sensitive switch (datasheet callout).
Example run-times (manual's illustrative estimates)
| Device | Estimate |
|---|---|
| LED light 12 V / 5 W | 380 h |
| Fan 45 W | 42 h |
| TV 110 W | 17 h |
| Car refrigerator 65 W (car-charger outlet) | 29 h |
| Hair dryer 1,200 W | 1.6 h |
| Laptop (60 Wh) | 31 charges |
| iPhone 15 (3,349 mAh) | 144 charges |

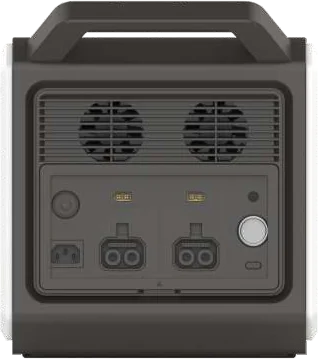

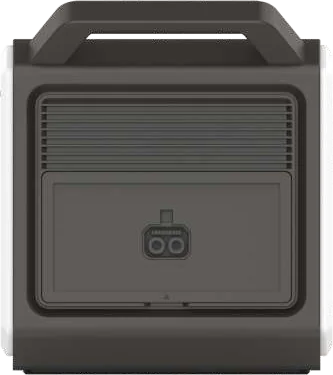

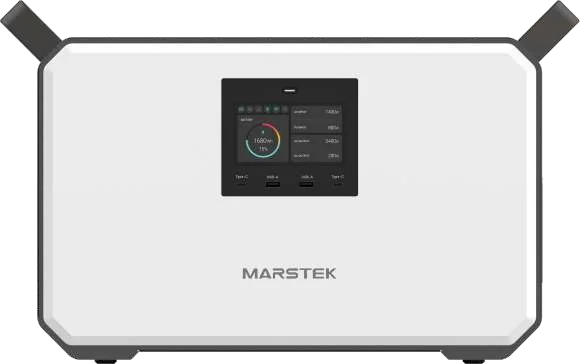

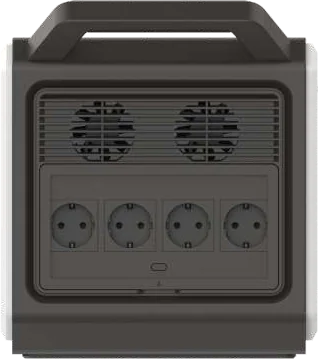

Product views
Specifications
M2200: datasheet
Source: M2200 Portable Power Station (230 V) datasheet spec page (transcribed from the rendered image).
| Specification | Value |
|---|---|
| Model | M2200 |
| General | |
| Capacity | 2,240 Wh |
| Cell chemistry | LiFePO4 |
| Lifecycle | 6,000+ cycles to 80% capacity |
| Indicator | App / TFT screen |
| Storage temperature | -10 °C to 45 °C |
| Charging temperature | 0 °C to 40 °C |
| Discharging temperature | -10 °C to 45 °C |
| Material | ABS + PC + metal |
| Weight | 26.7 + 0.5 kg (as printed) |
| Dimensions | 496 × 276 × 311 mm |
| Battery management system | OVP, UVP, OCP, SCP, OTP, UTP, etc. |
| Solar charge system | MPPT charge controller |
| Input | |
| AC | 2,000 W max. (220–240 V @ 50 Hz) |
| XT60 | 600 W × 2 max. (solar / DC 12–59 V) |
| Output | |
| AC | 2,400 W max. (220–240 V @ 50 Hz) |
| USB-A | 18 W max. (5–12 V) |
| USB-C | 100 W max. |
| USB-C | 45 W max. |
| DC5525 | 120 W (12 V / 10 A) |
| Car charger | 120 W (12 V / 10 A) |
| Socket standards | Europe, American, Britain and other specifications supported (datasheet icons) |
P2200 extra battery: datasheet
| Specification | Value |
|---|---|
| Model | P2200 (connects to M2200) |
| Capacity | 2,240 Wh |
| Cell chemistry | LiFePO4 |
| Nominal current | 50 A |
| Lifecycle | 6,000+ cycles to 80% capacity |
| Storage temperature | -10 °C to 55 °C |
| Charging temperature | 0 °C to 50 °C |
| Discharging temperature | -10 °C to 50 °C |
| Material | ABS + PC + metal |
| Weight | 22.5 ± 0.5 kg |
| Dimensions | 400 × 260 × 270 mm |
| Battery management system | OVP, UVP, OCP, SCP, OTP, UTP, etc. |
| Battery voltage range (input) | 42–50.4 V |
| Charge voltage | 50.4 V |
| Charge current | 50 A |
| Discharge current | 100 A |
| DoD | 90% |
Additional values from the manual
M2200 manual specification panel: capacity 2,240 Wh (50,000 mAh / 44.8 V); weight 27.6 ± 0.5 kg; dimensions 495.6 × 276 × 311 mm; cell LiFePO4; Bluetooth 4.2; cycle life 6,000 times (25 °C); AC input 2,000 W max.; XT60 600 W × 2 (12–59 V); car input 120 W max.; AC output 2,400 W rated / 4,800 W peak. The manual states it covers units with an AC output range of 200–240 V / 50 Hz.
| Item | Datasheet | Manual | Other |
|---|---|---|---|
| Weight | 26.7 + 0.5 kg (as printed) | 27.6 ± 0.5 kg | — |
| Dimensions | 496 × 276 × 311 mm | 495.6 × 276 × 311 mm | e-Catalog: about 49.6 × 37.6 × 31.1 cm |
| Discharging temperature | -10 °C to 45 °C | -10 °C to 40 °C | — |
| Product name | M2200 | M2200 | SRP flyer: "M2400" |
The previous version of this page listed the weight as 27.6 ± 0.5 kg (the manual value). The datasheet prints 26.7, so one of the two contains a transposed digit. Confirm by weighing a unit. All documents specify 50 Hz AC output. No source confirms 60 Hz output for Philippine units, so check with Silvera Solar Power.
Price (SRP)
Per the SRP flyer in Drive, the "M2400" Portable Power Station is ₱75,000 (original ₱85,000). The P2200 extra battery is not priced on the flyer. Confirm current pricing with Silvera Solar Power before quoting. See the price list.
Installation & safety
No installation is needed. The manual's safety rules (same family as the M1200):
Do not exceed 2,400 W AC. Overloading may cause fire or injury; the over-power protection will shut off the AC output, and you press the button to reactivate it after removing the load.
- Charge before first use with the power cord. Charging temperature 0–40 °C; output use -10–40 °C (manual).
- Long storage: recharge every 3 months, keep at 60–80%, store cool and dry, and keep out of direct sun or hot vehicles.
- Do not disassemble, immerse in water, stand on it, or expose it to fire or temperatures above 130 °C, flammable gas, or strong static or magnetic fields.
- Supervise near children; use only manufacturer-recommended attachments.
- Air travel: not allowed (over 100 Wh).
- Warranty: the manual states 5 years from date of purchase. Confirm the local warranty policy with Silvera Solar Power.
Related tutorials
- Portable power stations: setup & daily use
- Portable power station troubleshooting
- Brownout preparedness
- Backup calculator
- Smaller sibling: M1200 ("M1800")
Sources
- M2200 Portable Power Station 230 V datasheet (Drive): M2200 and P2200 spec tables, port callouts, renders
- M2200 user manual (Drive): charging times, run-time examples, use instructions, safety, warranty
- MARSTEK Flyers – SRP (Drive): "M2400" price and specs
- MARSTEK AI e-Catalog 2026 (Drive): "expandable up to 6,720 Wh" (see catalog capture)
